Modular demountable bleachers for 3-20 rows, built from standard parts that assemble and strip down fast with no on-site fabrication. Modules adjust horizontally and vertically to fit uneven, sloped or changing sites. For large temporary event seating and interim stands.

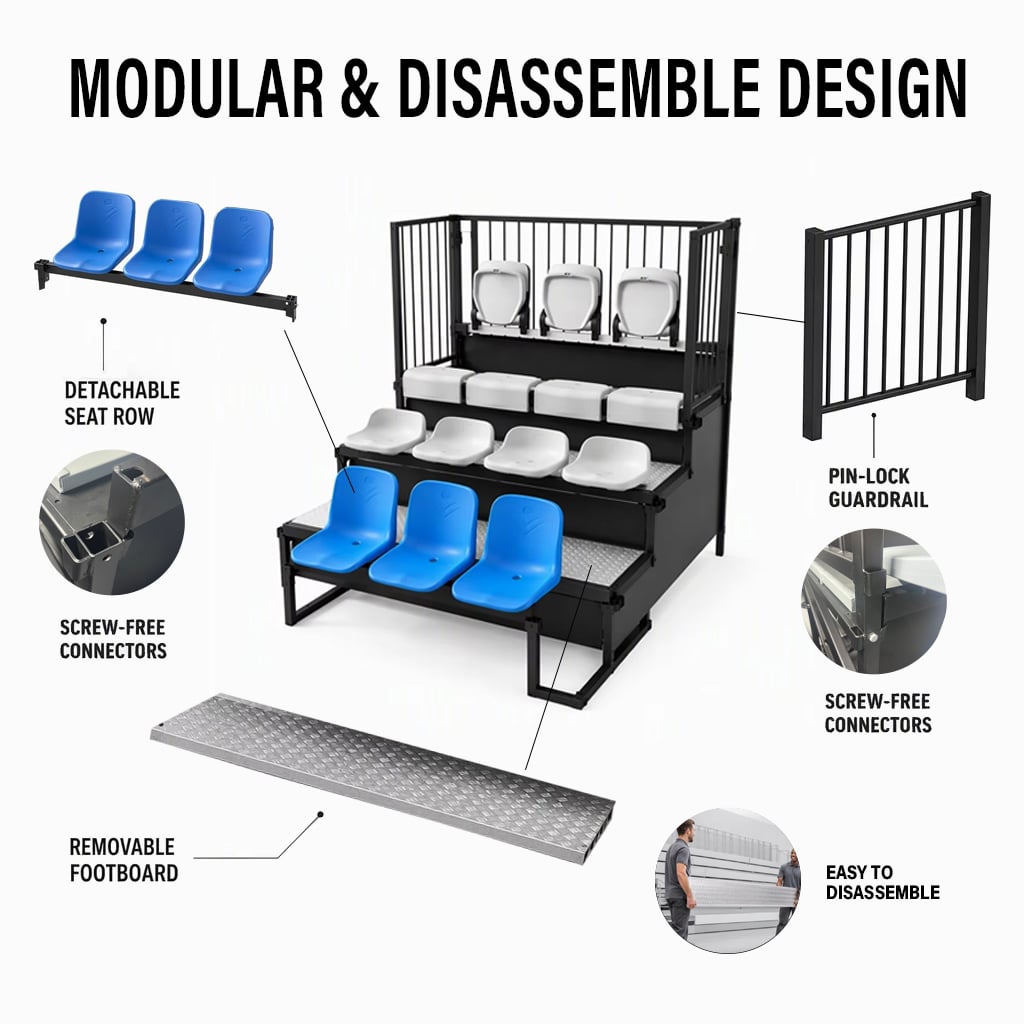

Modular demountable bleachers assembled from standardised modules welded from rectangular tubes, round tubes and flanges. The modules adjust horizontally and vertically to follow the ground, so the stand assembles and dismantles quickly with no on-site fabrication - and the same components can be re-used on the next site.
Standard range is 3-20 rows, with bench seats or seats with backrests, steps in aluminum, wood or checkered steel, and welded square or round tube guardrails.
| Parameter | Specification |
|---|---|
| Rows | 3 - 20 rows |
| Assembly | Modular; modules adjustable horizontally and vertically to fit the site |
| Main structure | Welded rectangular tubes, round tubes and flanges |
| Column options | Scaffold-type height-adjustable φ48 x 3 mm for uneven or sloped ground; rectangular tube 120 x 60 x 3.75 mm for hard, level ground |
| Steps / pedal | Aluminum, wood or checkered steel steps; 6063 anodized aluminum pedals |
| Seating | Bench seats or seats with backrests; blow-molded chairs (Nova / Eco-L / Eco-M) also available |
| Guardrail | Welded square or round tube; height not less than 1100 mm |
| Step width / height | 700 mm / 840 mm; 250 mm / 300 mm |
| Design loads | Dead 500 N/m2, live 4000 N/m2, safety factor 1.5, guardrail lateral 2000 N/m |
| Surface treatment | Hot-dip galvanizing, powder spraying, or both |
| Customization | Built to order - bracket span up to 4000 mm, column spacing up to 2000 mm |
Large temporary event seating; championships, festivals and concerts; temporary stands during construction; sports events and tournaments; venues with uneven, sloped or changing ground.
Flyon Sports is a Shenzhen-based one-stop sports venue supplier covering stadium seating, telescopic bleachers, metal grandstands, running tracks, sports flooring and turf protection - so you can source a complete venue from a single partner.
We deliver large-scale projects for Olympic Games and FIFA World Cup venues and national stadiums across 60+ countries, from our 20,000+ sqm self-owned factory, and hold IAAF (World Athletics), SGS, ISO 9001, CE and RoHS certifications.
Send us your site plan and the capacity you need - we will reply with a module layout and pricing.
